F-16 Versions

F-16 Block 1/5/10 - Reliability, maintainability, supportability, safety and minor cockpit improvements carried out on F-16 A/B aircraft from 1978 (Block 1), 1979 (Block 5) and 1980 (Block 10).
F-16 Block 15 - Introduced on F-16A/B aircraft from 1981. Improvements included increased maximum T-O gross
weight from 14,968 to 16,057 kg (33,000 to 35,400 lb), increased maximum weight for 9 g manoeuvres from 10,206 to 11,113 kg (22,500 to 24,500 lb), installation of two inlet hardpoint for sensor pods, strengthened store stations, increased horizontal tails, addition of provisions for six-station advanced Beyond Visual Range (BVR) missiles, early provision for AIM-7 air-to-air missile, cockpit upgrades, internal ECM upgrades and increased cooling capacity from 7 to 9 kW. Block 15 improvements introduced in 1988 include increased maximum T-O gross weight to 17,010 kg (37,500 lb), Pratt & Whitney F100-PW-220 turbofan engines, wide-angle Head-Up-Display (HUD).
F-16 Block 20 - Introduced on F-16A/B aircraft from 1996. Improvements include increased maximum T-O weight to 17,010 kg (37,500 lb), increased maximum weight for 9 g manoeuvres to 11,839 kg (26,100 lb), MLU cockpit, avionics and other provisions. APG-66(V)3 radar, Pratt & Whitney F100-PW-220 engine, Block 50 aft fuselage and wing. AIM-7 Sparrow air-to-air missile, AN/ALR-56M Radar Warning Receiver (RWR), AN/ALR-47 chaff/flare dispenser system.
F-16 Block 25 - First F-16C/D model. Intended for multirole applications and to allow for future growth of systems. Changes include F-16C/D cockpit with multifunction displays, AN/APG-68 radar, provision for internal ECM systems, AGM-65D Maverick missile increased capacity electrical system (60 kVA main generator, 10 kVA standby generator, 5 kVA emergency generator) and increased capacity environmental control system (12 kW). A total of 244 Block 25 aircraft was built and delivered to the USAF between 1984 and 1986.
F-16 Block 30/32 - Common engine bay introduced at Block 30/32 (deliveries from July 1986) to allow fitting of either P&W F100 PW-220 (Block 32) or GE F110-GE-100 (Block 30) Alternate Fighter Engine. Other changes include computer memory expansion and seal-bonded fuselage fuel tanks. First USAF wing to use F-16C/Ds with F110 engines was 86th TFW at Ramstein AB, Germany, from October 1986. Additions in 1987 included full Level IV multitarget compatibility with AMRAAM (as Block 30B), voice message unit. Shrike anti-radiation missiles (from August), crash survivable flight data recorder and modular common inlet duct allowing full thrust from F110 at low airspeeds. Software upgraded for full Level IV multitarget compatibility with AMRAAM early 1988. Industry-sponsored development of radar missile capability for several European air forces resulted in firing of AIM-7F and AIM-7M missiles from F-16C in May 1980; capability introduced mid-1991; missiles guided using pulse Doppler illumination while tracking targets in a high PRF mode of the AN/APG-68 radar.
F-16 Block 40/42 - 265 Block 40 and 197 Block 42 aircraft have been delivered to the USAF. Various modifications/product improvements have been incorporated to enhance the aircraft's capability as well as the user community's operational requirements. Upgrades to the Block 40 aircraft include the AN/ALE-47 advance chaff/flare dispenser and the AN/ALR-56M advanced radar warning receiver through continuing retrofit efforts. All Block 40/42 aircraft have been retrofitted with several software upgrades to allow delivery of improved weapons such as CBU 87/89 sensor-fuzed weapons and the AIM-120 AMRAAM air-to-air missile. Block 40/42 aircraft have also been enhanced to accommodate LANTIRN, TGP and NVP product enhancements. Future Close Air Supports (CAS) enhancements, beginning in mid-1998, for the Block 40 include NVG-compatible exterior lighting and digital communication of targeting information via MD-1295/A Improved Data Modem (IDM). All Block 40/42 aircraft will be upgraded in the same time-frame with a digital terrain system, a horizontal situation display and capabilities to deliver the CBU-97 weapon. First Block 40 F-16C/Ds issued late 1990 to 363rd FW (Shaw AFB, South Carolina); first LANTIRN pods to 36th FS/51st FW at Osan, South Korea, in 1992.
F-16 Block 50/52 - (deliveries began with F-16C 90-0801 in October 1991 for operational testing). Upgrades include F110-GE-129 and F100-PW-229 Increased Performance Engines (IPE), AN/APG-68(V5) radar with advanced programmable signal processor employing VHSIC technology, Have Quick IIA UHF radio, Have Sync VHF anti-jam radio and AN/ALR-56M advanced RWR. Changes initiated at Block 50D/52D in 1993 include full integration of HARM/Shrike anti-radiation missiles via Texas Instruments interface, upgraded programmable display generator with Digital Terrain System (DTS) provisions and scope for digital map capability, ring laser INS (Honeywell H-423 selected 1990) and AN/ALE-47 advanced chaff/flare dispenser. The USAF FY97 buy of the Block 50/52 F-16 includes incorporation of full colour, liquid crystal diode technology, multifunction displays and a Modular Mission Computer (MMC). The MMC performs the functions of three previous generation computers while requiring less power, space and cooling. FY97 F-16s are scheduled for delivery in 2000. Will carry the GBU-103/104/105 Wind-Corrected Munitions Dispenser, the AGM-154 JSOW, and the GBU-31/32 JDAM.
F-16 Block 50D/52D - Block 50/52 Wild Weasel F-16CJ, ability to carry the AGM-88 HARM and the AN/ASQ-213 HTS. First Block 50D/52D (91-0360) delivered to USAF on 7 May 1993; optimised for defence suppression missions, having software for horizontal situation display on existing two MFDs and provision for one of 100 HARM (AGM-88 High-Speed Anti-Radiation Missile) targeting systems ordered by USAF. In addition to the USAF, the Block 50/52 has been purchased by South Korea, Turkey, Greece and Singapore. International versions of the Block 50/52 include full integration of the AGM-84 Harpoon anti-shipping missile, AIM-7 semi-active BVR missile, ASPJ internal ECM system, ASPIS internal ECM system, advanced interrogating IFF system, high-frequency radio and customer unique systems. Deliveries of Block 50/52 began to 4th FS of 388th FW at Hill AFB, Utah, from October 1992; others to 480th FS of 52nd FW at Spangdahlem, Germany, replacing Block 30 aircraft from (first delivery) 20 February 1993. Block 50D/52D aircraft initially to 309th FS (now 79th FS) of 363rd (now 20th) FW at Shaw AFB, South Carolina; followed by 23rd FS/52nd FW at Spangdahlem, Germany, from 14 January 1994, then squadrons at Mountain Home AFB, Idaho, and Misawa, Japan. First Samsung-assembled F-16C Block 52D rolled out in South Korea on 7 November 1995.
F-16 Block 60/62 -
F-16E/F - Block 60, The Block 60 designation was originally reserved back in 1989. It was to be the F/A-16 which sported a 30 mm cannon and strengthened wing structure for anti-tank weapons such as 7.62 mm min pods. This aircraft was briefly in consideration to replace the A-10 warthog. The "original" Block 60 did not go into production, and its designation basically ends the series of adding another block. The "new" Block 60 F-16 represents an evolutionary step ahead of the current Block 50 aircraft. At first, the Block 60 was developed featuring a delta wing design. Through the development phase, LMTAS altered its strategy and decided to just start from the basic F-16 structure without altering too much on its design. Projected development, subject to customer demand. No firm configuration. Block 60 designation applied to export configuration specifically designed for the United Arab Emirates, including conformal fuel tank, new cockpit displays, an internal sensor suite, a new mission computer and an electronically scanned radar.
F-16/79 - 1x F-16A with engine General Electric J79-GE-119 (80,10 kN)(1st flight 29th Oct 1980), cheaper exort version
F-16/101 - Derivative Fighter Engine Program with engine from B1 General Electic F110 (1st flight 19th Dec 1980, ended May 1981)
F-16 AFTI - Modified preseries F-16A (75-0750) used for US Air Force Material Command Advanced Fighter Technology Integration (AFTI); first flight was 10 July 1982; currently with Block 15 horizontal tail surfaces, Block 25 wing and Block 40 avionics. Trials and programmes include automatic target designation and attack (1988), night navigation and map displays 1988 to 1989), digital datalink and two- aircraft operations (1989), autonomous attack (1989 to 1991) LANTIRN pod and Falcon Night FLIR trials (1992; tested automatic ground collision avoidance system and pilot-activated, low-level pilot disorientation recovery system 1991); and 1996-97, offboard target hand-off and attack (1995); aircraft to be modified as testbed for electric flight control actuators for JSF/Integrated Systems Technology (J/IST) (1998). Total 725 sorties June 1997.
F-16 GCAS - Ground Collision Avoidance System. The F-16 GCAS is a modified Block 25 F-16D to perform flight tests of an automatic ground
collision-avoidance system. This system has demonstrated that the use of advanced computing technology can significantly reduce the number of accidents attributed to controlled flight into terrain (CFIT).
F-16 (ADF) - Modification of 279 (actually 272 because of preconversion attrition) Block 15 F-16A/Bs as USAF air defence fighters to replace F-4s and F-106s with 11 Air National Guard squadrons; ordered October 1986. Modifications include upgrade of AN/APG-66 radar to improve small target detection and provide continuous-wave illumination, provision of AMRAAM datalink, improved ECCM, AlliedSignal AN/ARC-200 HF/SSB radio (F-16A only), Teledyne/E-Systems Mk XII advanced IFF, provision for Navstar GPS Group A, low-altitude warning, voice message unit, night identification light (port forward fuselage of F-16A only), and ability to carry and guide two AIM-7 Sparrow missiles. First successful guided launch of AIM-7 over Point Mugu range, California, February 1989; F-16(ADF)can carry up to six AIM-120 AMRAAM or AIM-9 Sidewinder or combinations of all three missiles; retains internal M61 20 mm gun. GD converted one prototype, then produced modification kits for installation by USAF Ogden Air Logistics Center, Utah, in conjunction with upgrade to OCU avionics standard; first Ogden aircraft, F-16B 81-0817, completed October 1988. Development completed at Edwards AFB during 1990; operational test and evaluation with 57th Fighter Weapons Wing at Nellis AFB, Nevada; first F-16(ADF), 81-0801, delivered to 114th Fighter Training Squadron at Kingsley Field, regon, 1 March 1989; 194th Fighter Interceptor Wing, California ANG, Fresno, achieved IOC in 1989, following receipt of first aircraft (F-16B 82-1048) on 13 April 1989; first AIM-7 launch by ANG (159th FS) June 1991. Programme completed early 1992; includes approximately 30 F-16Bs.
F-16A - First production version for air-to-air and air-to-ground missions; production for USAF completed March 1985, but still available for other customers; international sales continue; powered since late 1988 (Block 15OCU) by P&W F100-PW-220 turbofan; Westinghouse AN/APG-66 range and angle track radar; first flight of first aircraft (78-0001) 7 August 1978; entered service with 388th TFW at Hill AFB, Utah, 6 January 1979; combat ready October 1980, when named Fighting Falcon; most now serving ANG and AFRES; power plants being upgraded to F100-PW-220E, 1991 to 1996. Also produced in Europe. Built in Blocks 01, 05, 10 and 15, of which Blocks 01 and 05 retrofitted to Block 10 standard 1982 to 1984; Blocks retrofitted to OCU standard starting late 1987. First GF-16A ground trainers relegated to use by instructors at 82nd Training Wing, Sheppard AFB.
F-16B - Standard tandem two-seat version of F-16A; fully operational both cockpits; fuselage length unaltered; reduced fuel.
F-16B-2 - Second prototype F-16B (75-0752) converted to private venture testbed of close air support and night navigation and attack systems; equipment includes F-16C/D HUD, helmet sight or GEC-Marconi Cat's Eyes NVGs, Falcon Eye head-steered FLIR or LANTIRN nav/attack pods, digital terrain system (Terprom), and automatic target handoff system. Alternative nav/attack FLIR pods comprise GEC-Marconi Atlantic and Martin Marietta Pathfinder (LANTIRN derivative). NVG-compatible cockpit lighting. Equipment testing continues on AFTI testbed (which see). Aircraft no longer in service (placed in storage in 1996).
F-16/CCV - Control Configured Vehicle. The first YF-16 (72-1567) was rebuilt in December 1975 to become the USAF Flight Dynamics Laboratory's Control Configured Vehicle (CCV). CCV aircraft have independent or "decoupled" flight control surfaces, which make it possible to maneuver in one plane without movement in another -- for example, turning without having to bank. The CCV YF-16 was fitted with twin vertical canards added underneath the air intake, and flight controls were modified to permit use of wing trailing edge flaperons acting in combination with the all moving stabilator. The fuel system was adapted, so that by transferring fuel from one tank to another, the position of the aircraft center of gravity could be adjusted.

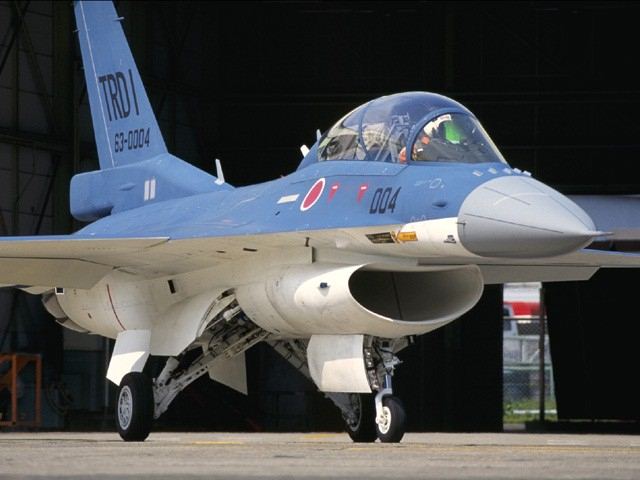

F-16 FS-X/TFS-X (F-2), TRDI - F-16 Fighter Support Experimental, version of the F-16C, Inspired Japanese Fighter, 19 October 1987; Production of F-2 has been authorised. , the FS-X is substantially larger than the F-16, resulting in a maximum take-off weight of 49,000lb, compared to the F-16C's 42,000lb, although both are powered by the same 129kN (29,000lb)-thrust General Electric F110-129 turbofan engine. Other FSX structural-design changes include radar-absorbent material (RAM) applied to the aircraft's nose, wing leading-edges and engine inlet, the use of titanium in the tail and fuselage, the addition of a braking parachute and a two-piece canopy reinforced against large bird strikes.
F-16ES - Enhanced Strategic single-seat and two-seat, long-range interdictor F-16 proposal; developed November 1993 in response to Israeli preference for F-15I Eagle; additional fuel in one 1,136 litre (300 US gallon; 250 Imp gallon) centreline tank and two wing tanks, each 2,271 litre (600 US gallons; 500 Imp gallons), as well as two conformal tanks. Combat radius extended to in excess of 1,000 n miles (1,852 km; 1,151 miles). Not purchased, but conformal tanks to be flight tested as retrofit option for existing F-16s. Conformal tanks could be without dorsal avionics compartment (that is independent), the F-16ES also features an internal forward-looking infrared (FLIR) system, which basically replicates the capabilities of the LANTIRN navigation and targeting system without the drag associated with external pods.
A-16 for the CAS/BAI Missions - In the 1980s, the USAF started setting aside F-16s for the planned A-16 modification, a dedicated close air support version of the F-16. In 1989, the designation Block 60 was reserved for the A-16. The A-16 Block 60 was to be equipped with a 30 mm cannon and provided with a strengthened wing structure for anti-tank weapons such as 7.62 mm min pods. This project failed because the 30 mm gun would heat up and senge the inner components of the left fuselage.
F-16 LOAN - During late-1996, A USAF F-16C and its F100-PW-200 engine were modified by a Lockheed Martin/Pratt & Whitney team. A LOAN (Low-Observable Asymmetric Nozzle) nozzle from the JSF (Joint Strike Fighter) Program Office was fitted on the engine for ground testing in a two-day rapid prototype operation. Developed under the Joint Strike Fighter BAA 94-2 program to evaluate advanced, affordable technologies applicable to the JSF, the LOAN provides a significant reduction in radar cross section and infrared signature emissions from the engine, as well as the potential for reduced maintenance costs.

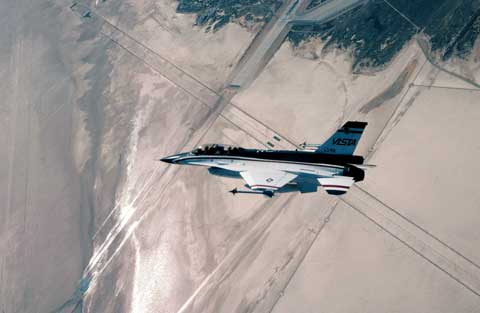

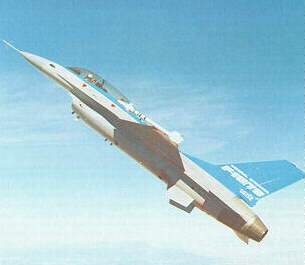

F-16 VISTA - In 1988, a contract was awarded to General Dynamics, Fort Worth Division to develop the VISTA (Variable stability In-flight Simulator Test Aircraft). Calspan, a subcontractor to GD, installed a center stick and integrated the computers needed to perform variable stability flights. Wright Labs bought the aircraft in 1988 and from 1988 until 1992, the VISTA/F-16 program was being accomplished. There was no connection between thrust vectoring and VISTA/F-16 at this time.
F-16 MATV -
The variable stability computers and the centerstick were temporarily removed from the VISTA for the MATV program, which began flight tests in July, 1993. The aircraft performed six functional flights at the Fort Worth facility in early July and was then ferried to Edwards AFB on March 15th. The remainder of the rigorous flight tests occurred over there and thrust vectoring in flight was first used on July 30. This Multi-Axis Thrust-Vectoring program compromised the investigation of high angle of attack flights above 20,000 feet. The variable stability computers were put back in place when the MATV program was concluded in March, 1994. In January 1995 it returned to Forth Worth before being flown to Wright-Patterson AFB where it was delivered to the Air Force. Over 130 flight hours have been accumulated with 95 missions.
NF-16D -
The heart of the VISTA is its Axisymmetric Vectoring Exhaust Nozzle (AVENtm), which is attached to the exhaust of the aircraft's General Electric F110-GE-100 engine. The AVEN tm achieves the required thrust vectoring within the divergent (supersonic flow) portion of the nozzle, which prevents pressure fluctuations from being fed back into the engine where they could cause a compressor stall. The divergent flaps are angled individually by means of a ring that is positioned by three additional hydraulic actuators located at 120-degree intervals, with power being supplied by an independent system.
RF-16R Recce - All existing European recce F-16s are block 15 A models and are operated by 306 squadron, Volkel AB, reconnaissance pods, including that for Tornado, demonstrated in flight on F-16 fighters with minimum changes; RNLAF reconnaissance F-16A(R) operational since 1983 with Orpheus pods, possibly using ATARS equipment.
YF-16 - The F-16 no 1 prototype (72-1567), YF-16 no 2 (72-1568)
F-16X - Projected development for 2010 service entry; 1.42 m (5 ft 0 in) fuselage stretch; modified F-22 delta wing with increased leading-edge sweep, but similar taper, section, twist, camber, moving surfaces and structure; some 80 per cent additional internal fuel, obviating drop tanks for most combat missions; conformal AIM-120 AMRAAM carriage. The F-16 would have been powered by the thrust-vectoring version of the Pratt & Whitney F100-PW-229 engine that is now being used in NASA's F-15 Active program. It has a modifiction of the conventional circular nozzle to achieve vectoring.
F-16 SFW - In 1976, DARPA (Defense Advanced Research Projects Agency) awarded funds to General Dynamics, Rockwell and Grumman under the Forward-Swept Wing Programme. Forward-swept wings offer low drag and improved low-speed handling characteristics, but they are extremely difficult to manufacture using conventional techiques. The use of advanced composite materials makes the wing rigid enough to withstand the forces introduced by aerodynamic stress, while simultanously avoiding a weight penalty.
The SFW/F-16 never left the drawing board. The engineers at General Dynamics studied several designs, including one with canards and an aft-mounted wing. The final design submitted to DARPA used the landing gear and most fuselage components of the traditional F-16, yet it had a slightly lengthened and strengthened fuselage to allow the forward-swept wing to be attached, since the new wing was slightly larger than the traditional wing.
The SFW/F-16 was rejected by DARPA in Januari 1981 in favour of the Grumman 712 (an F-5/F-20 derivative), later desiganted the X-29A. The decision was mainly a political one, as many thought that the test-scene at NASA was heavily dominated by General Dynamics' F-16s (AFTI, CCV, F-16XL). Another much-cited reason was that "One could only learn so much from a single airframe", though in retrospect, ongoing experiments with the F-16 seem to prove this wrong. It is interesting to note that the chosen design, the X-29A, consists for about 16% of F-16 components, including the Fly-By-Wire Flight Control System.
F-16XL - Two F-16XL prototypes, in flyable storage since 1985, leased from General Dynamics by NASA; first flight of single-seat No. 1, 9 March 1989; NASA modified this aircraft at Dryden with wing glove having laser-perforated skin to smooth air flow over cranked arrow wing in supersonic flight, reducing drag and turbulence and saving fuel. Two-seat No. 2, with GE F110-GE-129 engine, similarly converted early 1992. A Block 40 digital flight control system has replaced the original analogue system in F-16XL No. 1 (1997). F-16XL described in Jane's All the
World's Aircraft 1985-86.
F-16E - Single seat version of F-16XL (1st flight 3rd Jul 1982)
F-16F - Double seat version of F-16XL (1st flight 29th Oct 1982)

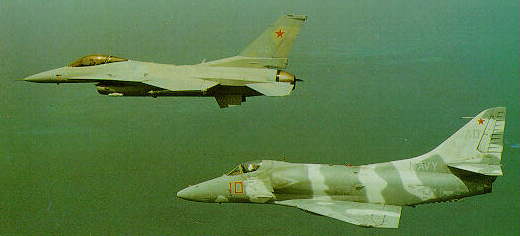

F-16N - F-16Ns for the US Navy (Top Gun Fighter Weaons School, VF-43, 45, 126). The F-16N is based on the standard F-16C/D Block 30 and is powered by the General Electric F110-GE-100, , they have no cannon or ASPJ and carry no missiles. Their EW fit consists of an ALR-69 radar warning receiver (RWR) and an ALE-40 chaff/flare dispenser. The F-16Ns have the standard Air Force tailhook and undercarriage, and are definitely NOT carrier capable.
TF-16N -
US Navy Supersonic Adversary Aircraft (SAA) modified from F-16C/D Block 30; selected January 1985; deliveries of 26 aircraft started 1987 and completed 1988; features include AN/APG-66 instead of AN/APG-68 radar, F110-GE-100 engine, deletion of M61 gun, AN/ALR-69 RWR, titanium in lower wing fittings instead of aluminium and cold working of lower wing skin holes to resist greater frequency of high g; wingtips fitted only for AIM-9 practice missiles and ACMI AIS pods, but normal tanks and stores on other stations. Four of 26 are two-seat TF-16N. F/TF-16Ns serve with `Top Gun' Fighter Weapons School (eight) and with VF-126 (six) at NAS Miramar, California, VF-45 (six) at NAS Key West, Florida, and VF-43 (six detached from VF-45) at NAS Oceana, Virginia. All F-16N were retired in 1994 for budgetary reasons.

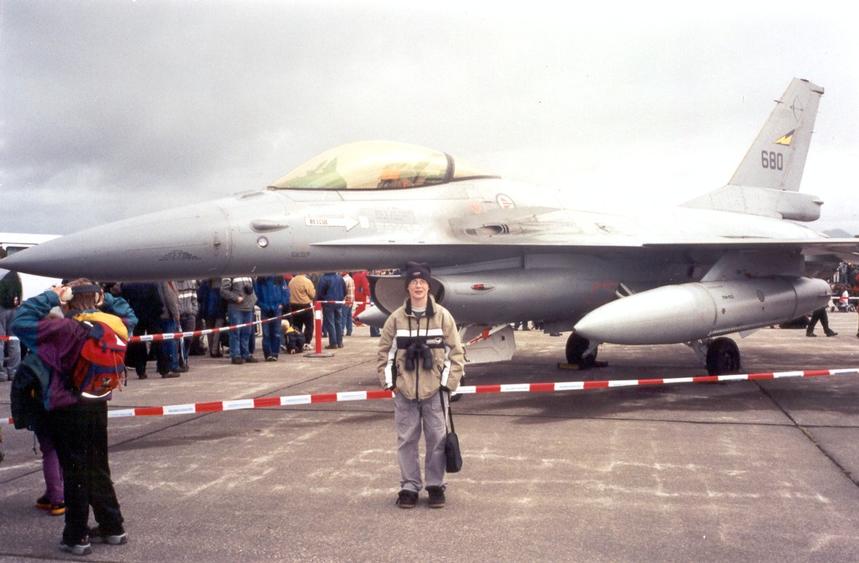

Mid-Life Update (MLU) - MSIP-F-16C/D - Single/two-seat USAF Multinational Staged Improvement Program (MSIP) aircraft respectively, implemented February 1980. MSIP expands growth capability to allow for ground attack and beyond-visual-range missiles, and all-weather, night and day missions; Stage I applied to Block 15 F-16A/Bs delivered from November 1981 included wiring and structural changes to accommodate new systems; Stage II applied to Block 25 F-16C/Ds from July 1984 includes core avionics, cockpit and airframe changes. Stage III includes installation of systems as they became available, beginning 1987 and extendingup to Block 50/52, including selected retrofits back to Block 25. Changes include Westinghouse AN/APG-68 multimode radar with better range, resolution, more operating modes and better ECCM than AN/APG-66; advanced cockpit with better interfaces and up-front controls, GEC-Marconi wide-angle HUD, two multifunction displays, Fairchild mission data transfer equipment and radar altimeter; expanded base of fin giving space for proposed later fitment of AN/ALQ-165 Airborne Self Protection Jamming system (since cancelled); increased electrical power and cooling capacity; structural provision for increased take-off weight and manoeuvring limits; and MIL-STD-1760 weapons interface for use of smart weapons such as AIM-120A AMRAAM and AGM-65D IR Maverick. First AIM-120 operational launch (by any aircraft), 27 December 1992; F-16D (90-0778) of 33rd FS/363rd FW destroyed Iraqi MiG-25.

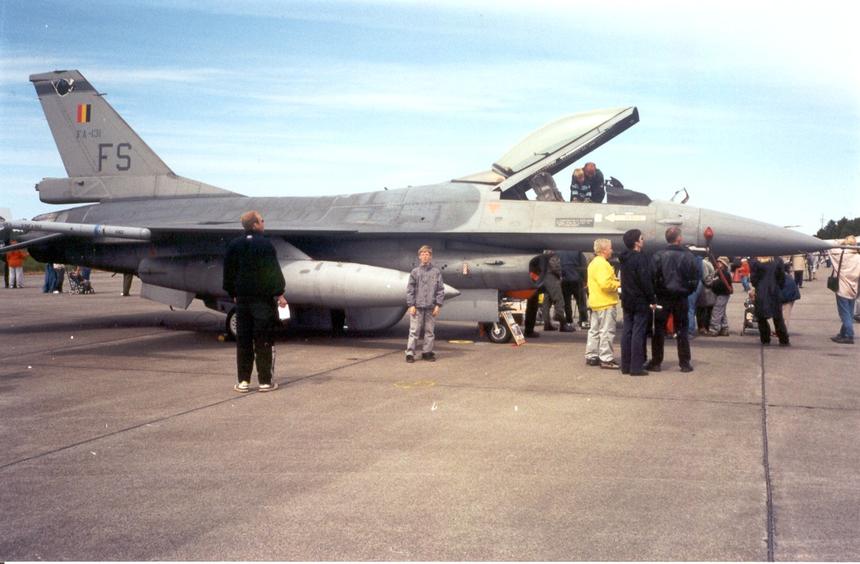

Operational Capabilities Upgrade (OCU) - USAF/NATO co-operative programme to equip F-16A/B for next-generation BVR air-to-air and air-to-surface weapons; radar and software updated, fire-control and store management computers improved, data transfer unit fitted, combined radar-barometric altimeter fitted, and provision for AN/ALQ-131 jamming pods. Ring laser INS and upgrade from P&W F100-PW-200 to F100-PW-220E planned for 1990s. FMS exports since 1988 to Block 15OCU standard with F-16C features including wide-angle Head-Up Display (HUD), ring laser INS, F100-PW-220 power plant and AIM-9P-4 Sidewinder AAM capability.
F/A-16 Block 30 for the CAS/BAI Missions -Proposed modification of 300 Block 30/32 aircraft for Close Air Support (CAS)/Battlefield Air Interdiction (BAI); head-steered FLIR, Pave Penny laser ranger and 30 mm cannon pod. From 1995, 200 F-16Cs were to have received CAS/BAI modifications, including DTS, Navstar GPS and improved data modem. Block 30/32 upgrade abandoned January 1992 in favour of CAS/BAI assignment of Block 40/42 aircraft, having LANTIRN capability; these require more simple modification with ground datalink, laser spot-tracker, anti-jam radio, missile approach warner, provision for pilot's night vision goggles and upgrades to LANTIRN pods. Plan for mission version has since been dropped in favour of simpler upgrade to multirole Block 40 standard.
F/A-16, F/A-16C for the CAS/BAI Missions - The USAF was rather reluctant to let the idea of a dedicated CAS F-16 go, and planned to replace its A-10s with F-16s fitted with a version of the Warthog's Avenger cannon. In November 1988, the 174th TFW of the New York ANG began transitioning from the A-10A Thunderbolt II to the F-16A/B Block 10, becoming the first unit to operate the F-16 in a close air support role. During Desert Storm, their 24 F-16A/B aircraft were equipped to carry the General Electric GPU-5/A Pave Claw pod on the centerline station. The pod houses a 30mm GAU-13/A four-barrel derivative of the seven-barrel GAU-8/A cannon used by the A-10A, and 353 rounds of ammunition. The aircraft received the new designation F/A-16, and were the only F-16s ever to be equipped with this weapon, intended for use against a variety of battlefield targets, including armor.
F-16 CJ - Block 50D/52Dmodification for electronic fight
F-16 CG/DG - Block 40/42 modification for ground strikes
F-16 CB -Combat modification for ground strikes

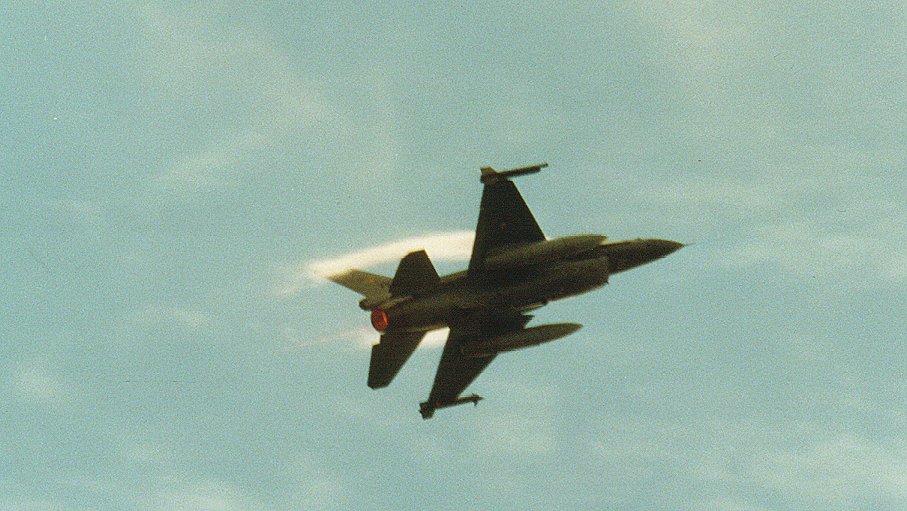

F-16 AM -
Agile Falcon -
In 1984, General Dynamics proposed the Agile Falcon as a counter to new Soviet fighters such as the MiG-29 and the Su-27. It was designed to make use of some of the already-planned improvements to the Fighting Falcon known as MSIP IV. In addition, it had a 25-percent larger wing and was powered by an improved General Electric F110-GE-129 or Pratt & Whitney F100-PW-229 engine. Very little interest was attracted at that time.
F-16 AT, Falcon 21 - The Falcon 21 or F-16AT was proposed in 1990 as a low-cost alternative to the ATF. It was to use the basic F-16XL design, along with one of the proposed ATF engines. However, it was to use a trapezoidal delta wing rather than the F-16XL's cranked-arrow wing.
CK-1 - The CK-1 is an F-16D "Block 40" test bed fighter, built by Lockheed according to MANAT's specifications. (MANAT is the IAF Flight Test Center). This version is packed with sensors, measuring control surface movements and the airplane's rhythm of reaction to those movements. All measurements are delivered and analysed in "real time", to a test engineer sitting at the back seat. Special sensors are built into the CK-1 along the wing's root, measuring wing flatter and torsion forces. Other sensors could be installed in external pods or even at an extension attached to the fighter's nose.
F-16 ACE - F-16 ACE (Avionics Enhancement Capability) - Israeli modification project for older F-16 A/B versions

new cockpit with three multifunctional displays and HUD with Display and Sight Helmet (DASH)

new radar E/L-2032 with SAR (Synthetic
Aperture Radar)

+ some other small news, bigger external tanks, structured wing, optical and elecronical sensors.......

F-16 FSD - (Full-Scale Development) airframes, a number that was later reduced to 8 (6 F-16A/FSD's and 2 F-16B/FSD's). The first F-16A/FSD, #50745, was flown on December 8th, 1976.
F-16I Soufa - The F-16I Soufa ("Storm") is a modified variant of the F-16D Block 50 and 52 fighter and ground attack aircraft, with the avionics and weapons systems capability modified to meet the requirements of the Israeli Air Force. Israel ordered 50 F-16I aircraft in 2001 and signed the agreement for an optional additional 52 aircraft in September 2001. The Israeli Air Force has selected the F16I in a two-seat configuration only. The production program, Peace Marble V, is the fifth acquisition of F-16s and will increase the number of Israeli Air Force F-16 aircraft to 362, giving the IAF the largest fleet of F-16 fighters apart from the USA. The F16I Soufa made its maiden flight in December 2003. The first two aircraft were delivered to the IAF at the Ramon Air Base, in February 2004. Deliveries will be completed at a rate of about two per month over four years, with final delivery in 2008. There is a significant level of airframe co-production and avionics component production in Israel for the Soufa and for other variants of the F-16. IAI and Cyclone Aviation Products Ltd in Carmiel manufacture the ventral fins, rudders, horizontal stabilisers and engine access doors. The aircraft are assembled at the Lockheed Martin Aeronautics facility in Fort Worth, Texas.
DESIGN - The F-16I is fitted with a pair of removable conformal fuel tanks provided by IAI. The conformal fuel tanks (CFT), holding 450 US gallons of extra fuel, are mounted on both sides of the upper fuselage. The very low drag configuration CFTs have a very small effect on the aircraft's agility, handling quality and flight limits. The use of the conformal tanks increases the aircraft's mission range and combat endurance. The fitting of conformal tanks makes the two wing inner store stations normally used for external tanks (stations 6 and 4, each rated at 4,500lb capacity) available for weapon carriage, doubling the aircraft's air-to-ground weapons capacity. The F16I is fitted with a dorsal avionics compartment. The first version produced with the dorsal compartment was the Israeli two-seat Block 30 F-16D aircraft, produced in the late 1980s. The large dorsal compartment extends from the rear of the cockpit to the fin and houses additional avionics systems, chaff and flare dispensers and the aircraft's in-flight refuelling receptacle.
COCKPIT - The front cockpit is for the pilot and the rear cockpit is configured for the weapons systems operator or, with the change of a single switch, for a pilot instructor. The Elbit Dash IV Display and Sight Helmet System enables the pilot to aim the weapon by looking the target. Dash IV shortens the lock-on procedure time for engagements. The helmet measures the pilot's line of sight to the target so the sensors, avionics and weapons are slaved to the target. Dash IV improves situation awareness by helping the pilots to visually detect targets at high angles off the nose of the aircraft, providing critical information in any direction the pilot looks. The Soufa is fitted with a wide angle head up display from Elop and high definition (120ppi) 4in x 4in colour multi-function displays supplied by Astronautics C.A of Petah Tikva, Israel. Other new features include a colour moving map display, digital video recording equipment, cockpit lighting and external strip lighting compatible with night vision goggles and a high capacity data transfer set.
AVIONICS - The Soufa has an advanced avionics suite including general avionics computer, colour display processors and interfaces all produced by Elbit Systems. The communications systems include a Rafael UHF/VHF radio and an HF radio, Elta satellite communications and an IAI integrated tactical video data link. The navigation system includes a combined ring laser gyro inertial navigation system and global positioning system (RLGINS/GPS) and a digital terrain system. Rafael developed the algorithms for the digital terrain system.
WEAPON SYSTEMS - Elbit is supplying the aircraft's central mission computer, the signal processing unit for the displays and the stores management systems. RADA Electronics Industries in Netanya, Israel, and Smiths Aerospace, USA, have developed the aircraft's data acquisition system with an advanced digital data server and data recording system. Israel Military Industries supplies most of the weapons pylons and racks and the external fuel tanks. The mission data and video is downloaded to a ground debriefing station provided by RADA. The system has potential for three-dimensional, multi-aircraft mission creation. The Rafael Litening II targeting and navigation pod is equipped with a third generation forward looking infrared (FLIR), charge-coupled device (CCD) television, laser spot tracker and rangefinder and infrared marker. The system enables the pilot to detect, identify, acquire and track ground targets for the delivery of conventional and precision guided weapons, such as laser guided or GPS guided bombs. The aircraft is also equipped with the Lockheed Martin LANTIRN navigation pod which provides night navigation and all-weather automatic terrain following.
AA MISSILES - The air-to-air missiles will be the short range Python 4 and Python 5 and the short range to beyond visual range radar-guided Derby, both supplied by Rafael. The all-weather Derby has an active radar seeker, look down / shoot down capability, lock on before or after launch, and programmable electronic counter countermeasures (ECCM). The lock on before launch mode is deployed for tight dogfights. The F16I will be equipped with the Rafael Python 5 air-to-air missile when development has been completed. The Python 5 is capable of lock on after launch and uses imaging infrared guidance. The new seeker uses a dual wavelength focal plane array and is equipped with robust infrared counter countermeasures capability.
AG SYSTEMS - The air-to-surface weapons are carried on the two pairs of inboard underwing stations and include anti-ship missiles, anti-radiation missiles, laser guided bombs, GPS guided bombs and Israeli Military Industries (IMI) runway attack munitions. The F-16 aircraft has been used in carriage trials of IMI's STAR-1 anti-radiation weapon which is in the development phase.
COUNTERMEASURES - The electronic warfare suite, being supplied by Elisra, includes radar warning receivers, missile approach warners and jamming systems, including the Elisra SPS 3000 self-protection jammer which is installed in the large spine. The chaff and flare dispenser is supplied by Rokar.
RADAR - The aircraft has the Northrop Grumman AN/APG-68(V)9 multi-mode radar, which has five times the processing speed and ten times the memory capacity of the previous APG-68 radars on the F-16. Elta is involved in the co-production of the radar. The modes of operation include high resolution synthetic aperture (SAR) ground mapping and terrain following. The radar provides autonomous, all-weather, stand-off precision weapon delivery. Air-to-air modes include range while search, air combat mode, multiple target track while scan, cluster resolution, single target tracking and target illumination pulse Doppler tracking. The radar increases the air-to-air detection range by 30% compared to earlier generation systems.
ENGINES - The Soufa is powered by the Pratt and Whitney F100-PW-229 Increased Performance Engine (IPE). This new, more powerful engine allows the aircraft a maximum take-off weight of 23,582kg. The aircraft is also fitted with heavyweight landing gear.
